| Diameter | Width | Length | Opening | Product | Weight |
|---|---|---|---|---|---|
| Inside | Inside | Code | per 100 pcs | ||
| a | b | c | d | ||
| mm | mm | mm | mm | kg | |
| 3.5 | 10 | 29 | 5 | 80401 | 0.90 |
| 4 | 11 | 32 | 5 | 80402 | 1.30 |
| 5 | 13 | 39 | 6 | 80403 | 2.00 |
| 6 | 14 | 46 | 7 | 80404 | 3.30 |
| 7 | 16 | 51 | 8 | 80405 | 5.30 |
| 8 | 17 | 59 | 10 | 80406 | 7.50 |
| 9 | 17 | 64 | 11 | 80407 | 10.3 |
| 10 | 20 | 70 | 12 | 80408 | 13 |
| 12 | 23 | 83 | 14 | 80409 | 25 |
| 14 | 26 | 97 | 17 | 35 | |
| 16 | 29 | 112 | 20 | 50 |
Standard Quick Link
| MATERIAL | Mild steel |
|---|---|
| FINISH | Electro galvanised |
Standard Quick Link
1 file(s) 348.55 KB
Related products
-
General HardwareSpring Hook, to Crue
-
General Hardware
Split Pin
-
General Hardware

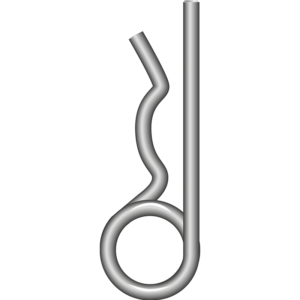

Spring Pin, Single Type
