Green Pin Tycan® Lifting Chain

MATERIAL	Made from 100% Dyneema©; layers of webbing in a Mobius twist with stitching on each side.
SAFETY FACTOR	MBL equals 4 x WLL
TEMPERATURE RANGE	-40°c up to +70°c
CERTIFICATE	As standard; EC Declaration of Conformity Upon request; 2.1, 2.2, MTCa, DNC GL TQ, CE

Green Pin Tycan Lifting Chain

1 file(s) 153.48 KB

Download

Categories: Chain, Tycan Range

Description

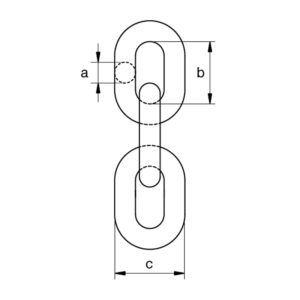

WLL	Link	Width	Thickness	Length	Links	Elongation	Layers	Product	Weight
Capacity	Size	Link	Link	Inside	Per Metre	at MBL		Code	per Metre
		a	b	c
t	mm	mm	mm	mm		%			kg
2.6	11x15	15	11	100	10	5	6	FCHLIFT1115	0.32
4.0	11x20	20	11	100	10	5	6	FCHLIFT1120	0.47
5.0	15x25	25	15	100	10	5	8	FCHLIFT1525	0.58
6.8	13x30	30	13	125	8	5	7	FCHLIFT1330	0.75
